How to Prevent Condensation in Ventilation and Air Conditioning Ducts

Condensation on ventilation and air conditioning ducts is a common and critical challenge in HVAC design. If it is not properly addressed, condensation can lead to moisture damage, mould growth, corrosion, increased energy losses, and reduced system performance over time.

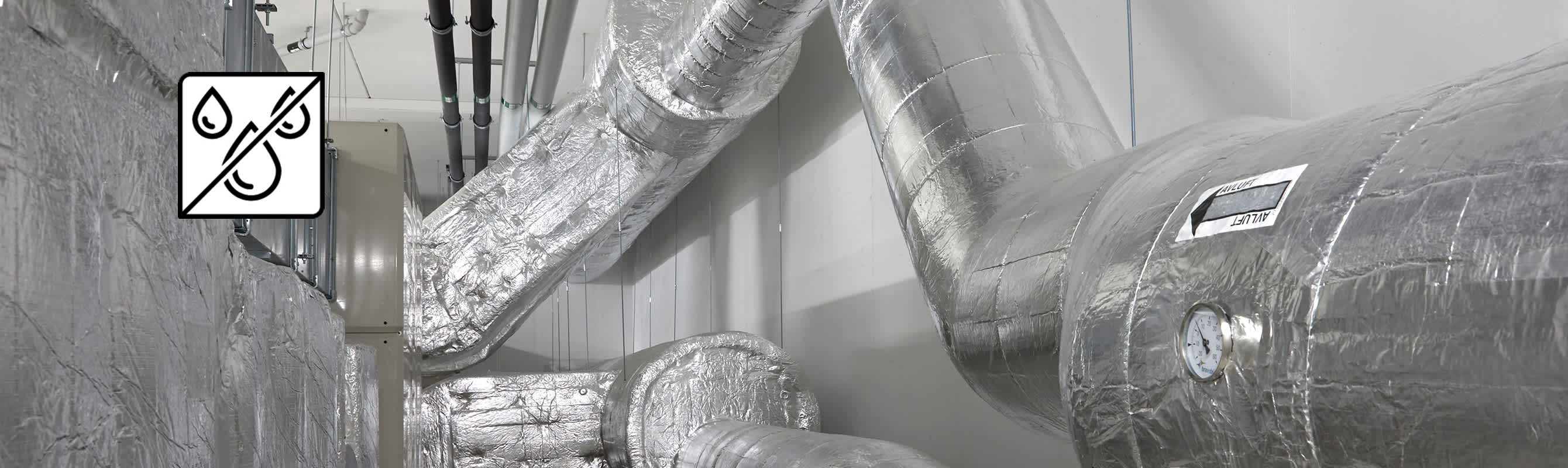

In modern buildings, ventilation ducts are often intentionally left exposed as part of an open-ceiling architectural aesthetic. However, visible ductwork does not eliminate the risk of condensation. On the contrary, exposed ducts are directly affected by room humidity and temperature variations, which increases the importance of correct thermal insulation and a fully sealed water-vapor barrier.

This article explains why condensation occurs, when condensation insulation is required, and how reliable solutions can be designed using PAROC® stonewool insulation systems that combine thermal performance with reinforced vapor-tight facings and compatible sealing tapes, enabling complete barrier continuity across facings, seams, and penetrations.

Why condensation occurs on ventilation ducts

Condensation occurs when water vapor in the air changes into liquid water on a surface that is colder than the surrounding air.

In ventilation systems, this typically happens when:

• Cold air flows inside a duct located in a warmer environment
• The surface temperature of the duct falls below the dew point of the surrounding air

Common everyday examples include dew on grass or condensation on window surfaces. In HVAC systems, the same physical principle applies, but the consequences are more severe due to continuous operation, concealed installations, and long service lives.

If condensation is not controlled, it can cause:

• Moisture damage to insulation and surrounding building structures
• Mould growth and deterioration of indoor air quality
• Corrosion of ducts, fasteners, and support systems
• Increased heat loss and higher energy consumption
• Reduced service life of ventilation and air conditioning systems

Condensation insulation: when is condensation prevention required?

Condensation prevention insulation is required whenever ventilation ducts operate under conditions where moisture formation is possible. Typical situations include:

• Ventilation ducts in humid environments such as swimming pools and food processing facilities
• Outdoor duct installations exposed to temperature fluctuations
• High-humidity indoor spaces
• Ducts transporting cold air through warm or heated areas

The dew point is the temperature at which air becomes fully saturated, reaching 100 % relative humidity, and can no longer retain water vapor in gaseous form.

Example:

At an air temperature of 20°C and 50 percent relative humidity, the dew point is approximately 9.3°C. If the surface temperature of a ventilation duct falls below this value, condensation will form unless the duct is correctly insulated and sealed.

Dew point calculations are therefore a key design parameter and should be considered early in the specification process. In practice, dew point assessment should be supported by calculation tools rather than assumptions. For example, PAROC® Calculus allows designers to calculate surface temperature, required insulation thickness, and heat loss in accordance with EN ISO 12241. By verifying that the duct surface temperature remains above the surrounding air’s dew point under defined operating conditions, designers can reduce condensation risk already at the specification stage.

How condensation is prevented in HVAC systems

Condensation is prevented by ensuring that the surface temperature of the duct remains above the surrounding air’s dew point throughout operation.

This requires:

• Correct insulation thickness, dimensioned from a dew point assessment. Calculation tools such as PAROC® Calculus help specifiers determine surface temperatures and heat loss in accordance with EN ISO 12241, enabling accurate insulation thickness selection.
• A continuous water-vapor barrier provided by a water-vapor-tight facing, such as reinforced aluminium AluCoat or BlackCoat, across the full installation.
• Airtight sealing of all joints, seams, and penetrations with matching tapes to maintain barrier continuity and reduce water vapor permeability.

The duct’s insulation performance depends on remaining dry from liquid water. Wet insulation behaves like a wet coat and no longer provides effective thermal protection. Thermal resistance drops and heat losses increase. Preventing moisture ingress is therefore a design and installation priority for HVAC ductwork. To stop humid air from reaching cold duct surfaces, a fully sealed water-vapour barrier should be used.

Moisture can enter insulation through:

• Breaks in the water-vapour-tight barrier due to damaged or improperly installed facings, unsealed joints, seams, or penetrations
• Inadequate insulation thickness causes the duct surface temperature to fall below the dew point
• Contaminated duct surfaces, such as grease, dust, or moisture, which prevent welding pins from bonding correctly and make it impossible to achieve continuous water-vapour-tight facing and fully sealed joints

If moisture enters and reaches the duct through the insulation, the following consequences can be expected:

• Reduced thermal resistance (lambda, λ in use)
• Increased energy losses
• Higher risk of corrosion under insulation (CUI)
• Compromised long-term system durability

The principle is simple: when the water-vapour-tight facing is sealed continuously, moisture cannot enter the insulation.

Key principles for reliable condensation protection of HVAC ductwork

Reliable condensation control is achieved through correct design, correct product selection, and correct installation. The following principles reflect general industry’s best practice and should be applied in accordance with project-specific requirements and national regulations.

Best practice principles include:

• Determining insulation thickness based on dew point calculations. Condensation risk should always be evaluated by comparing duct surface temperature with the dew point of the surrounding air.
• Using stone wool insulation products with water vapour-tight facings for cold applications. This helps prevent humid air from reaching cold duct surfaces.

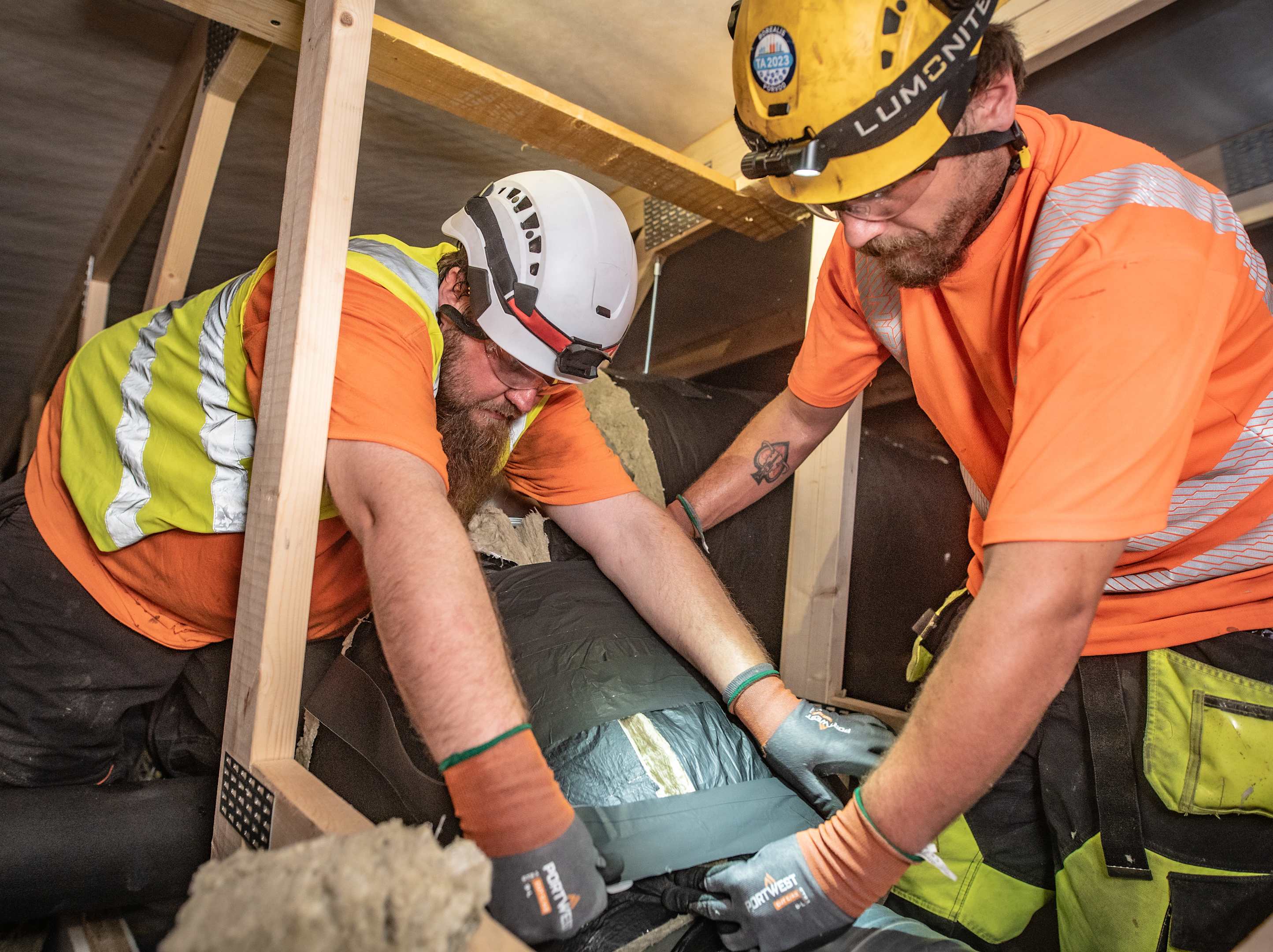

• Ensuring all joints, seams, and penetrations are thoroughly sealed using compatible tape. A continuous vapour barrier is essential to prevent moisture ingress.
• Minimizing thermal bridges by reducing unnecessary joints or interruptions. Fewer discontinuities reduce the risk of cold spots where condensation may occur.
• Following manufacturer installation instructions without shortcuts. Proper installation practices are critical, as incomplete vapour sealing will undermine even high-quality insulation systems.

Please note that even the highest-performing insulation cannot prevent condensation if the water-vapour barrier is incomplete or incorrectly installed.

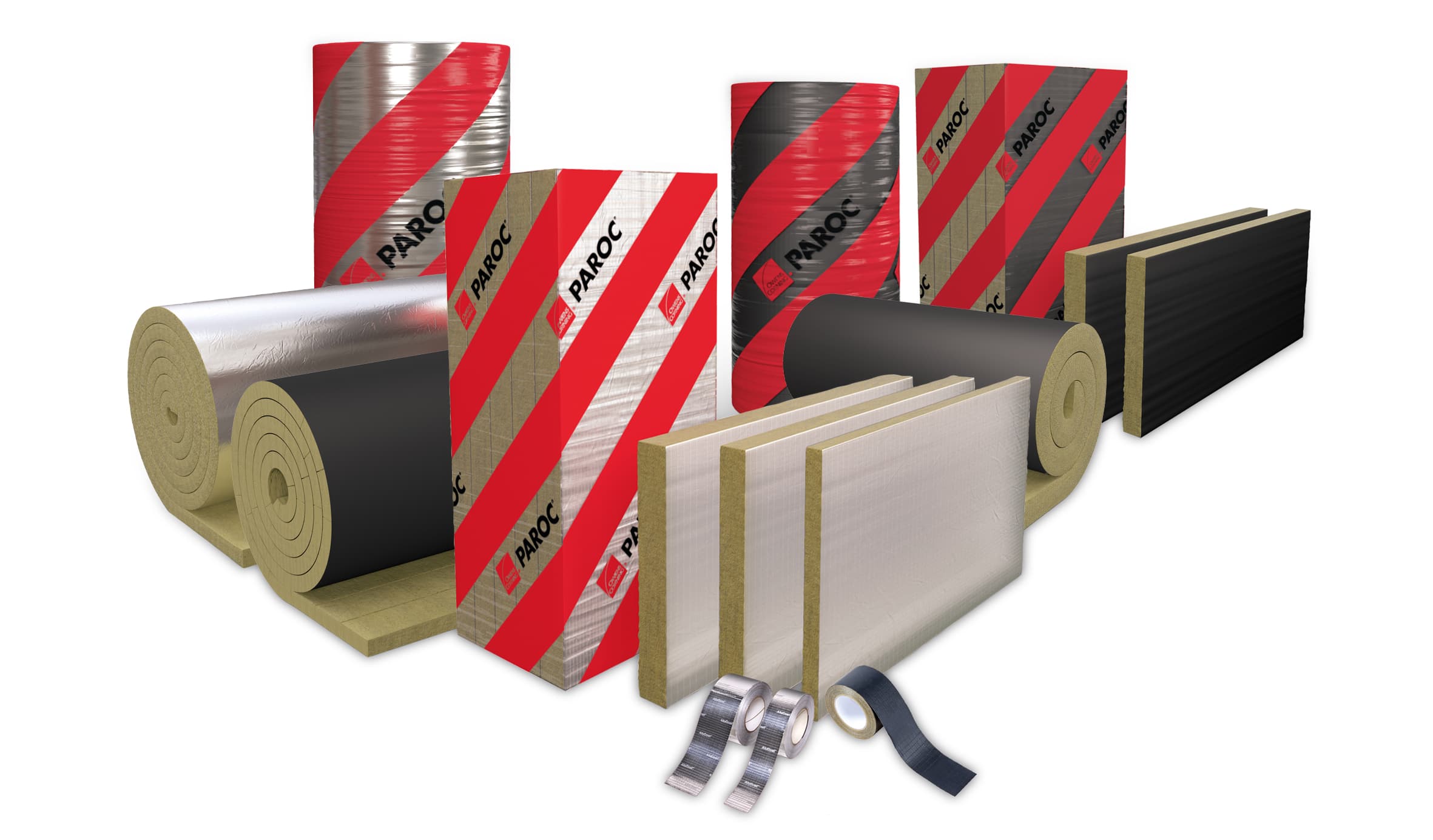

PAROC® Stonewool solutions for HVAC condensation control

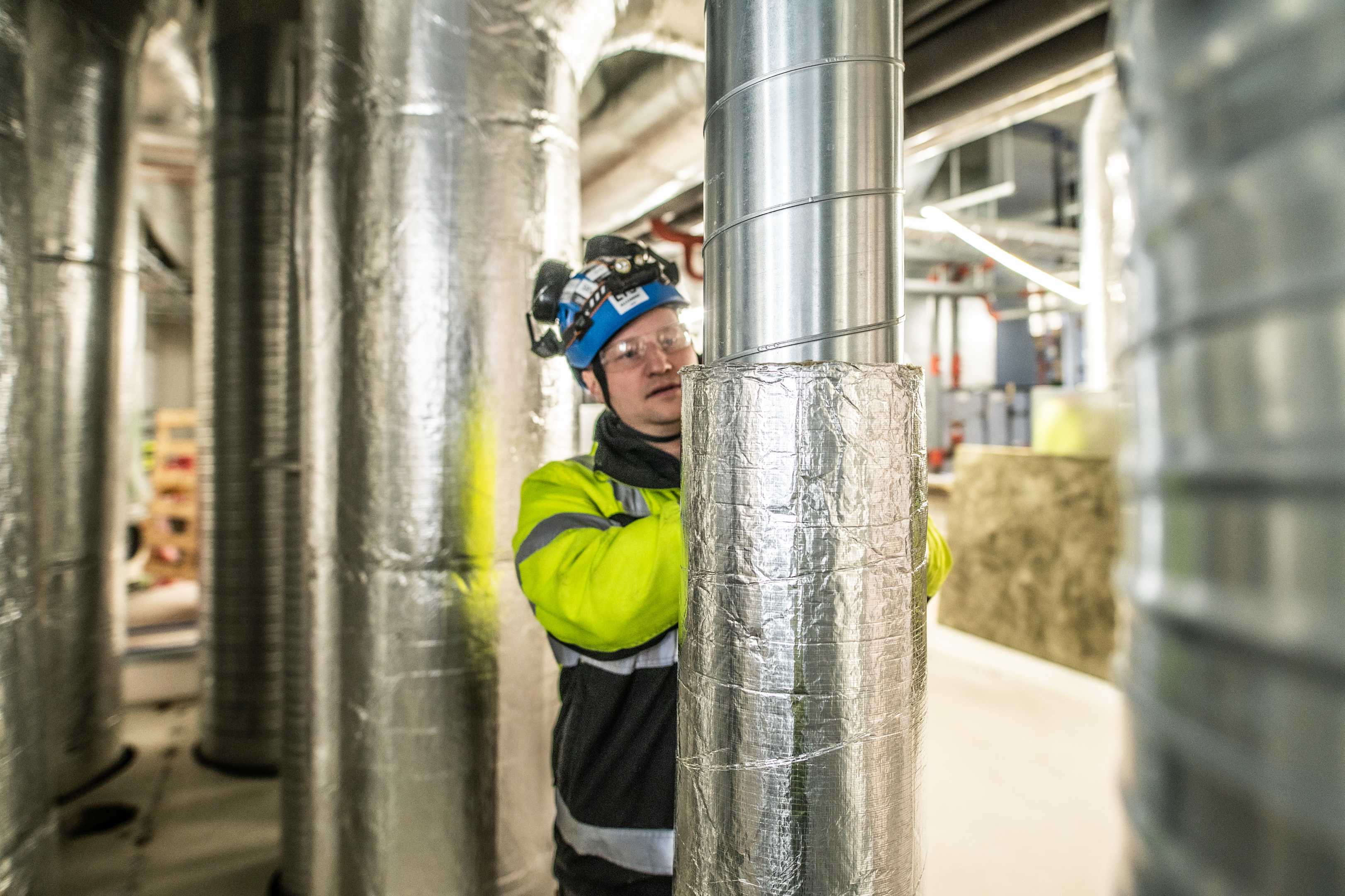

PAROC® Stonewool insulation solutions for HVAC applications are designed to support effective condensation control, thermal efficiency, and fire safety throughout the service life of the building.

Key performance benefits include:

• Effective condensation control through reinforced aluminium AluCoat or BlackCoat water-vapour-tight facings, when joints are properly sealed with matching PAROC® tapes
• Stable thermal performance (λ) over time thanks to dimensionally stable stone wool fibres that do not age or settle, with λ values specified per product and temperature in each product Declaration of Performance (DoP)
• Fire resistence derived from the properties of non-combustible stone wool material, which achieves Euroclass A1 for reaction-to-fire classification
• Long-term durability, with stone wool maintaining thermal and fire performance throughout the reference service life of the building
• Low-emission performance suitable for occupied spaces, supported by voluntary M1 indoor air emission certification

PAROC® stonewool insulation does not shrink, degrade, or lose performance, making it a reliable long-term solution for ventilation systems. Confirm water-vapour barrier performance and other key properties in each product’s Product Data Sheet and Declaration of Performance (DoP).

Tools and standards supporting correct specification

HVAC ventilation insulation design must be based on proper tools and recognised standards.

To support accurate insulation design and specification, HVAC professionals can use:

• Calculation tools such as PAROC® Calculus, which perform thermal insulation calculations accordance with EN ISO 12241
• Harmonised European product standards such as EN 14303 (mineral wool insulation specification) and recognised test methods for vapour transmission
• National building and HVAC regulations defining insulation performance requirements

Using calculation tools and applicable standards during the design phase helps reduce technical risk and ensures regulatory compliance.

Condensation control starts at specification

Condensation insulation is a critical part of HVAC system performance, energy efficiency, and building durability. By understanding condensation theory, applying dew point-based design, and specifying durable stone wool solutions with vapour-tight installation, specifiers can minimise long-term risks and ensure reliable HVAC performance throughout the building lifecycle.

Why select PAROC® for condensation insulation?

PAROC® HVAC ventilation insulation products with water-vapour-tight facings, together with their matching sealing tapes, support the creation of a continuous water-vapour barrier for condensation insulated ventilation ducts. These combinations help designers meet dew point-based specification requirements and support reliable long-term performance.

Both PAROC® AluCoat and BlackCoat facings are specified as water-vapour-resistant barriers. When seams are sealed with matching PAROC® tapes, they reduce vapour permeability and help prevent condensation. These sealed surfaces provide low vapour transmission for the entire assembly, keeping the insulation layer dry in service.
